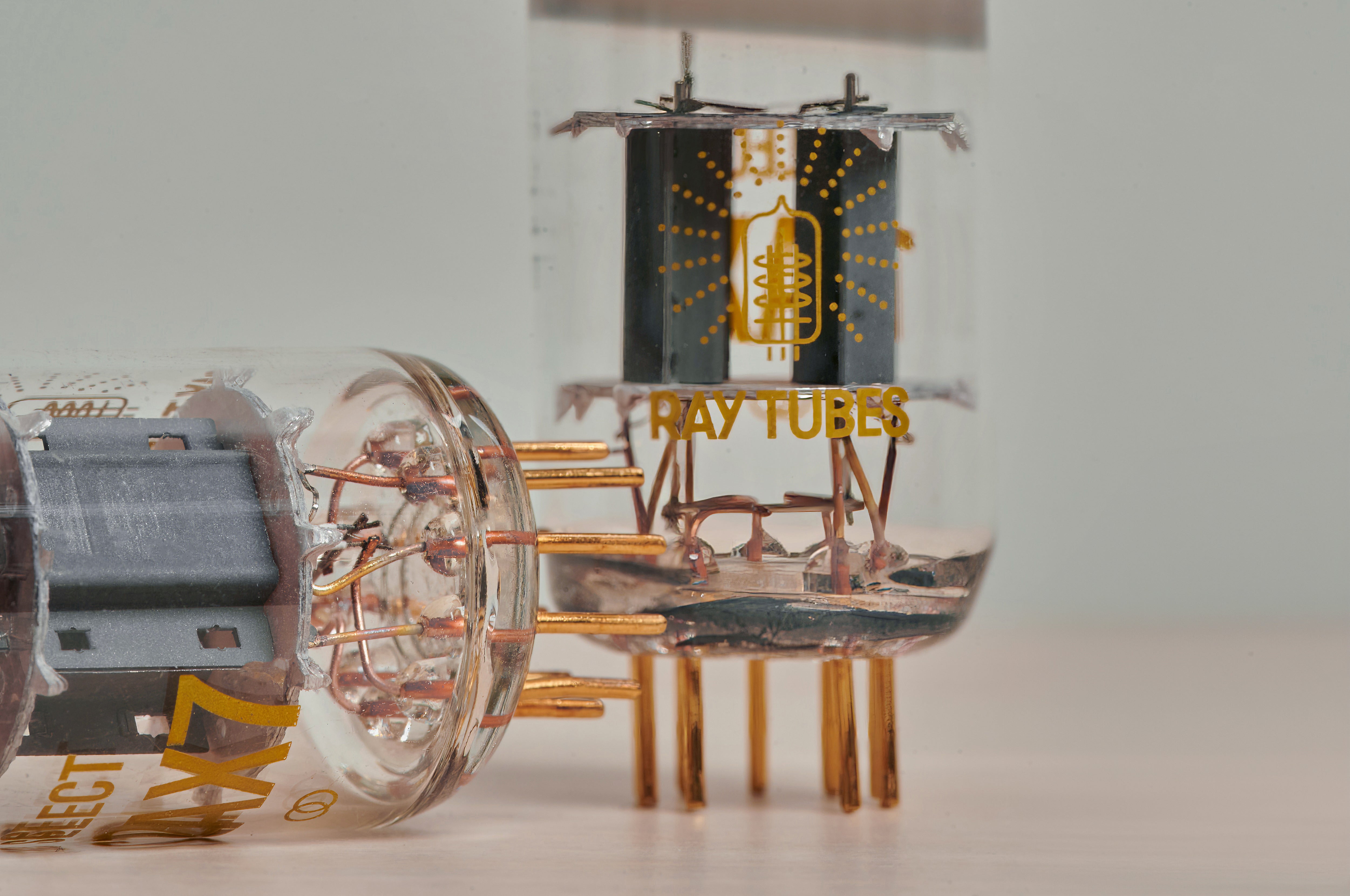

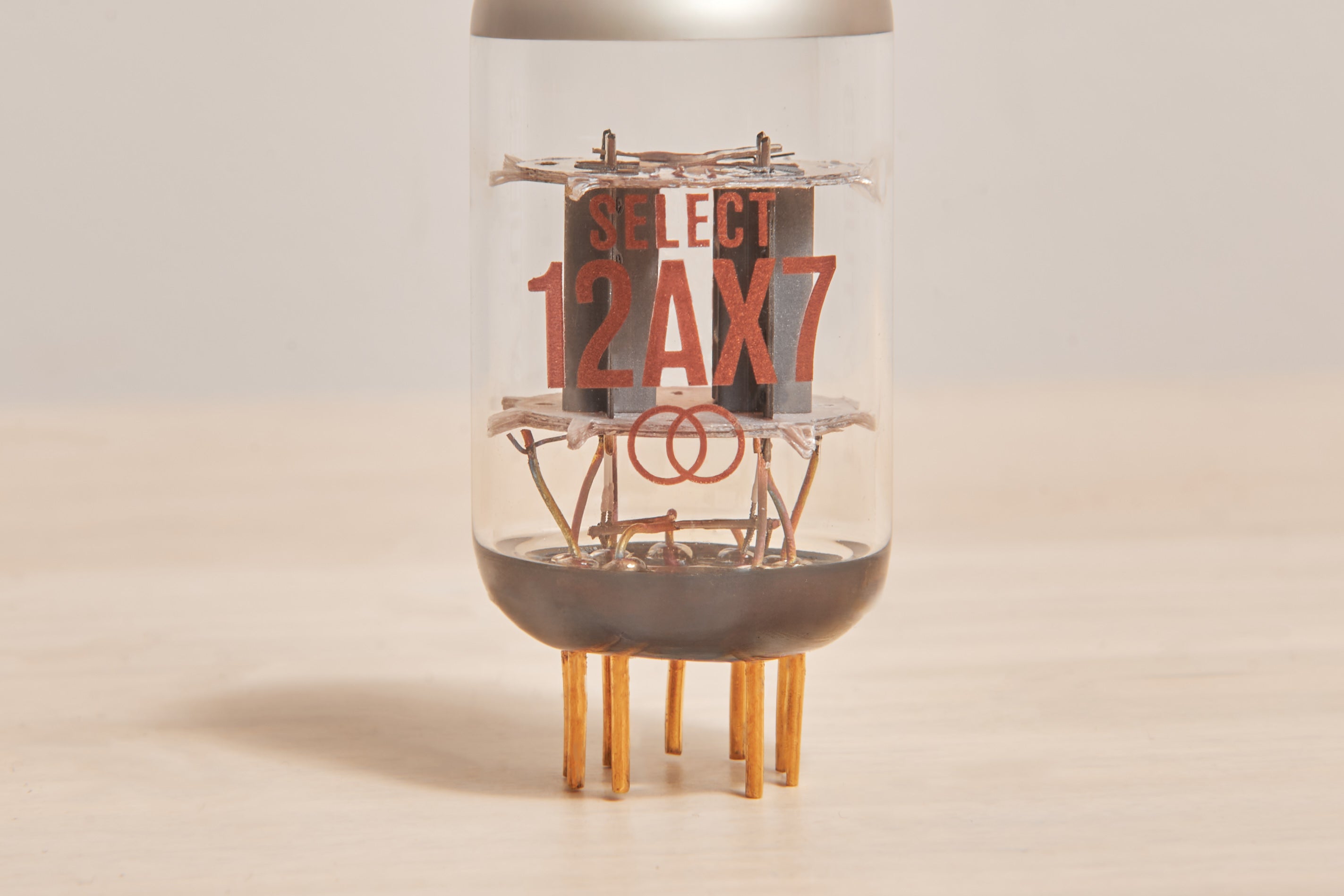

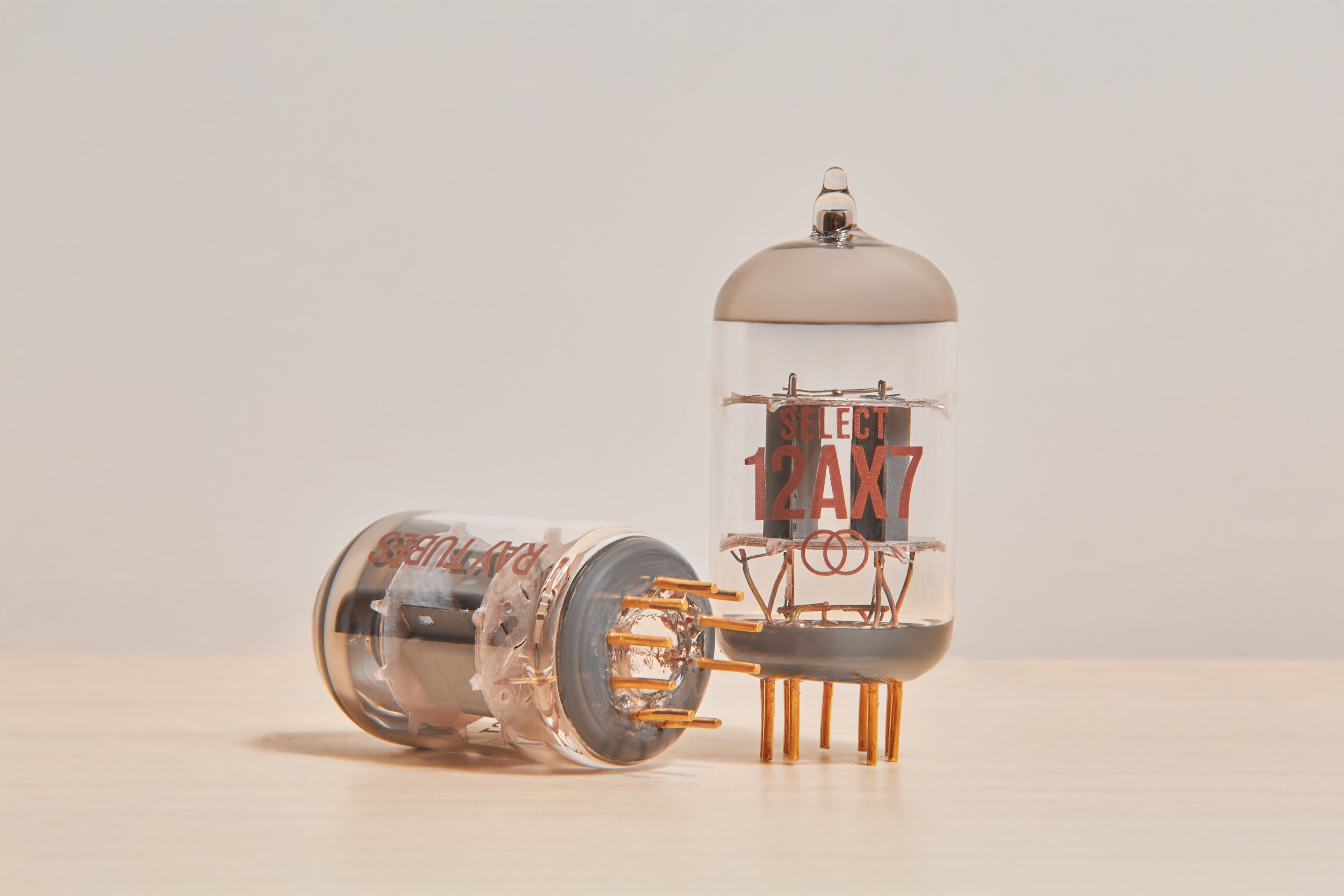

SELECT 12AX7

SELECT 12AX7

SELECT 12AX7

Ray Tubes Retail Partners

North America

Buy on Apos 🇺🇸

Buy on Bay Bloor Radio 🇨🇦

Europe

Buy on VAL HiFi 🇬🇧

Buy on Gedeon Audio 🇭🇺

Buy on ARK Audio 🇸🇪

Oceania

Buy on Passion for Sound 🇦🇺

Asia

Buy on HiFi Connect 🇮🇱

Product Highlights

Hand-selected and tested
Gold pins for corrosion resistance and excellent conduction
A substantial upgrade from standard NOS tubes
Low noise and microphonics

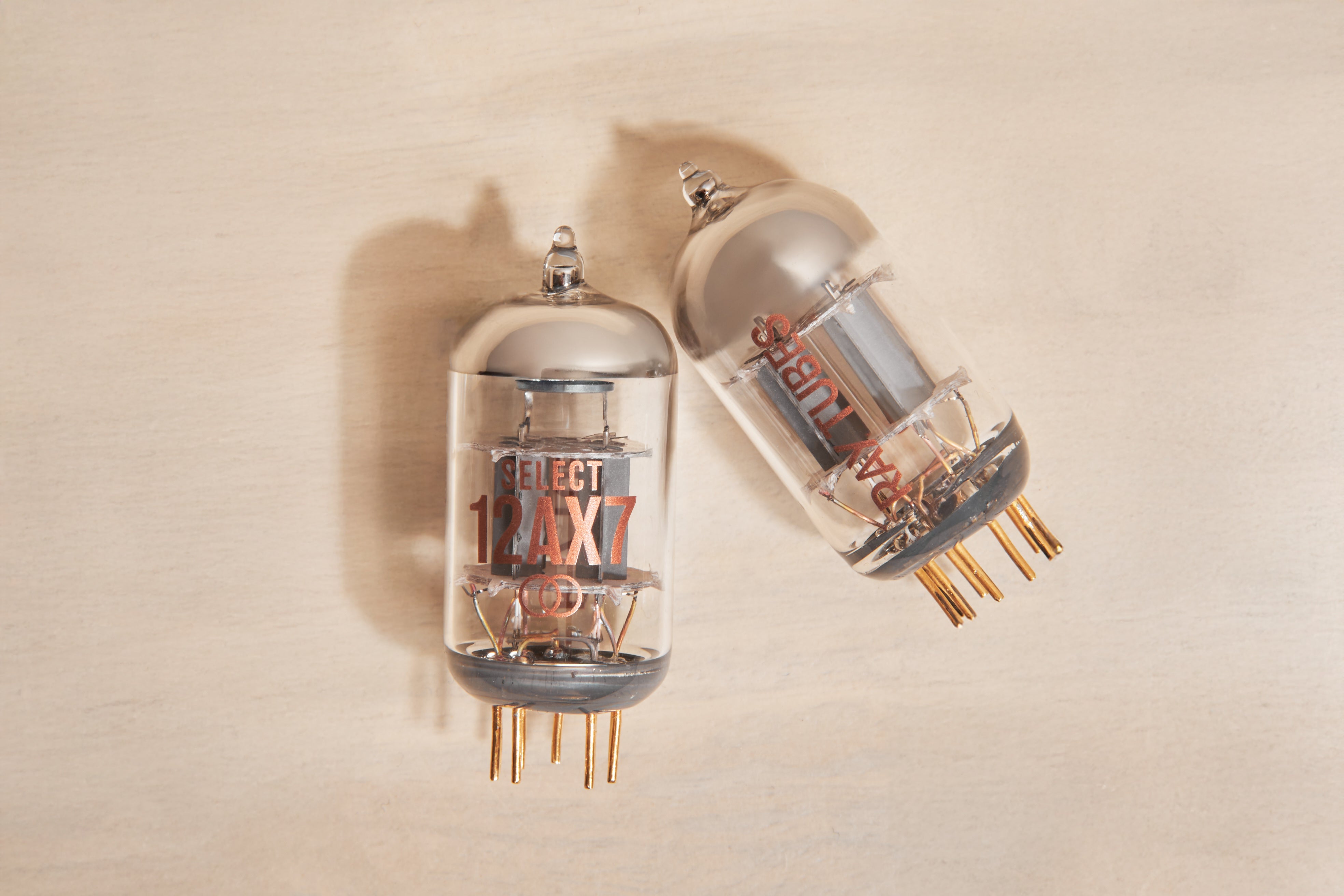

Matched pair (2 tubes) or single tube (1 tube)
Only 4% of the tubes commissioned for production meet our standards for gain and conductance matching
12-month warranty against manufacturing defects

Technical Specification

Tube Type: 12AX7 / ECC83 / CV4004

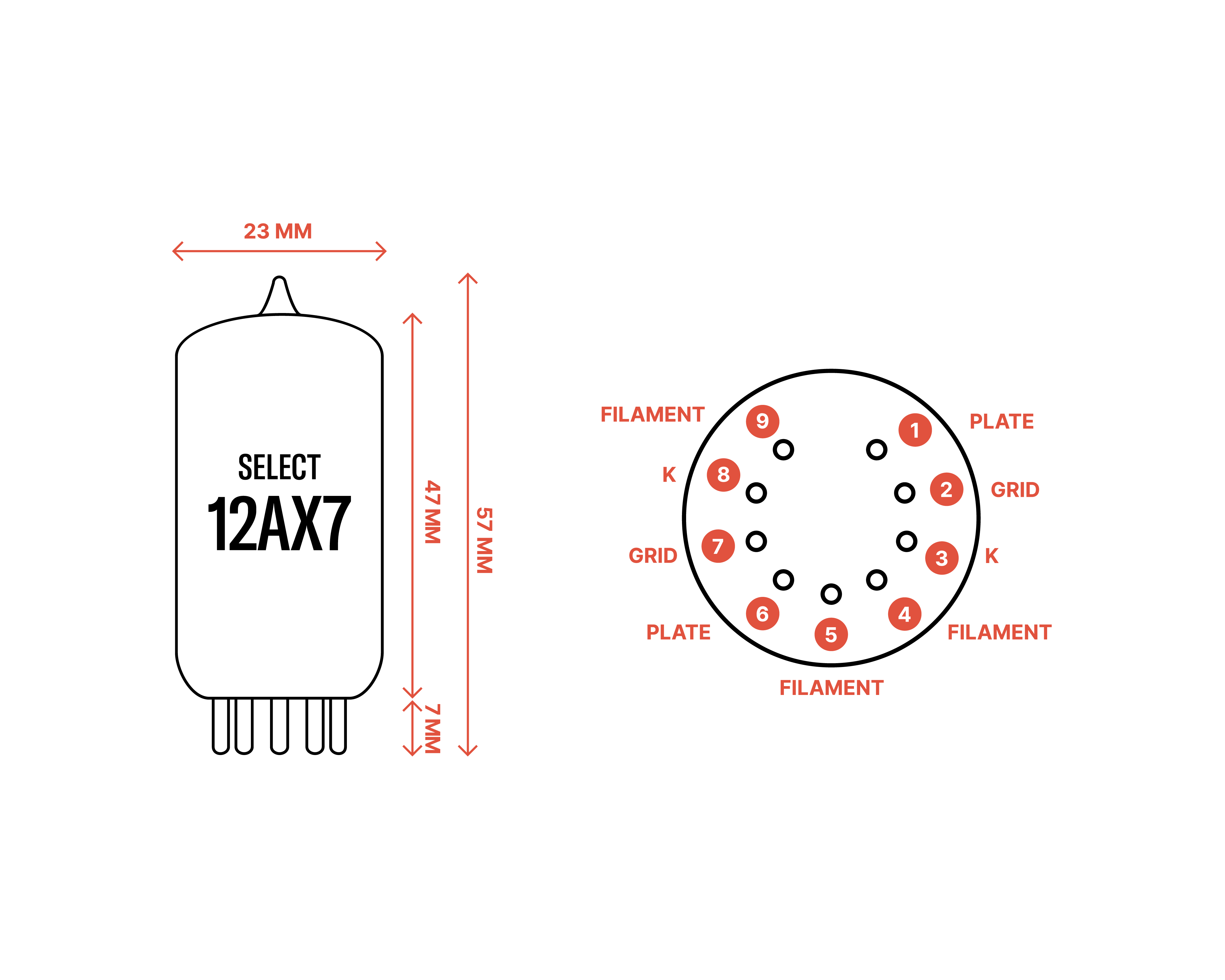

Tube Socket: 9-pin

Max Anode Dissipation Power: 1 W
Max Screen Dissipation Power: N/A
Output Power in Class A1 Amp (Single Tube): N/A
Output Power in Class AB1 Amp: N/A

Max Anode Voltage: 300 V
Max Screen Voltage: N/A
Max Grid Voltage: ~50 V
Heater Voltage: 6.3 V
Heater Current: 0.3 A
Transconductance: 1.6 mA/V
Amplification Factor: 100
Internal Resistance: 62.5 kΩ

Package Content

Pair of matched vacuum tubes or single vacuum tube
User handbook featuring burn-in guidelines
Certificate of authenticity and warranty

Compatible Amps

Explore Ray Tubes' Tube Amp Compatibility List
